How to keep item selected in xamarin forms?
sagar
Member ✭✭✭
Member ✭✭✭
Hi am using LIstView, when I tap on the item background of that item will be default some color will set. If I click on another item then both items background will be set. What I need to do when I click on second item first Item should not be selected, only clicked item should be active. How to do it?
Find below for xaml file code
<ListView ItemsSource="{Binding MainMenues}" SeparatorVisibility="None" HasUnevenRows="true" SelectionMode="Single">
<ListView.ItemTemplate>
<DataTemplate>
<ViewCell>
<StackLayout Orientation="Vertical">
<Grid Padding="15">
<Label Text="{Binding MainMenuTitle}" FontSize="16" VerticalOptions="Center" HorizontalOptions="Start"/>
<Image x:Name="im" Source="{Binding ArrowIconSource}" IsVisible="{Binding IsSubmenu}" HeightRequest="15" WidthRequest="15" VerticalOptions="Center"
HorizontalOptions="End">
</Image>
<Grid.GestureRecognizers>
<TapGestureRecognizer
Tapped="Handle_Tapped"
NumberOfTapsRequired="1" />
</Grid.GestureRecognizers>
</Grid>
<Grid IsVisible="{Binding IsChildrenVisible}" HeightRequest="{Binding ChildrenRowHeightRequest}">
<ListView ItemsSource="{Binding Submenues}" SelectionMode="Single" ItemTapped="ListView_ItemTapped" SeparatorVisibility="None" SelectionMode="Single" HasUnevenRows="false">
<ListView.ItemTemplate>
<DataTemplate>
<ViewCell>
<Grid Padding="10">
<Label Text="{Binding SubMenuTitle}" VerticalOptions="Center" HorizontalOptions="Start" />
<Image IsVisible="False" Source="rightarrow.png" HeightRequest="12" WidthRequest="12" VerticalOptions="Center"
HorizontalOptions="End"/>
</Grid>
</ViewCell>
</DataTemplate>
</ListView.ItemTemplate>
</ListView>
</Grid>
</StackLayout>
</ViewCell>
</DataTemplate>
</ListView.ItemTemplate>
</ListView>
C# Code
async void Handle_Tapped(object sender, EventArgs e)
{
try
{
Grid g = sender as Grid;
Image im = g.Children[1] as Image;
await im.RotateTo(180);
Label label = g.Children[0] as Label;
g.BackgroundColor = Color.Red;
viewModel.ShowCities(label.Text);
}
catch (Exception ex)
{
throw;
}
}
private async void ListView_ItemTapped(object sender, ItemTappedEventArgs e)
{
try
{
var s = e.Group as SubMenu;
switch (s.SubMenuTitle.ToLower())
{
case "mobile":
await RootPage.NavigateFromMenu(5);
break;
case "sub menu":
await RootPage.NavigateFromMenu(4);
break;
}
}
catch (Exception ex)
{
}
((ListView)sender).SelectedItem = null;
}
In both, I need to select only one listview at a time.
Tagged:
0
Answers
Hello Sagar, Default property is listview_ItemSeleted you can select one at one time if you select antoher item in list view first will be deselect automatically.
ListView.ItemSelected += (object sender, SelectedItemChangedEventArgs e) =>
{
var item = (Item) e.SelectedItem;
};
Hi, @sagar
Try this code
private async void ListViewItemSelected(object sender, SelectedItemChangedEventArgs e)
{
if ((sender != null && ListView.SelectedItem != null)) { // put your Code here.. } ListView.SelectedItem = null; }If you want more information you can check my blog.
https://xmonkeys360.com/2019/03/26/xamarin-forms-listview-with-checkbox/
Set
SelectionMode="Single"to yourListView@abhishabd and @chetanrawat , Thank for your reply I will let you know once I implement.
@yogeshwaranmohan , It's already set to SelectionMode="Single"
Grid g= null; async void Handle_Tapped(object sender, EventArgs e) { try { if(g !=null) { g.BackgroundColor = Color.White; } else { g = sender as Grid; Image im = g.Children[1] as Image; await im.RotateTo(180); Label label = g.Children[0] as Label; g.BackgroundColor = Color.Red; viewModel.ShowCities(label.Text); } } } catch (Exception ex) { throw; } }@chetanrawat, When I declare Grid g outside the function it is never going inside the if(g !=null) condition.
Tell me one thing, you want to change background color of list item on Grid Click or ListView item selection ?
call Grid
Grid g= new Grid();
@chetanrawat, Now it is going inside in if condition every time
Please attach screenshot of your issue. That will more helpful
@Sumit_Sharma, I want to be set the background color for listview, since grid in the inside listview, if we can change color of it no problem. The user should understand which item he tapped.

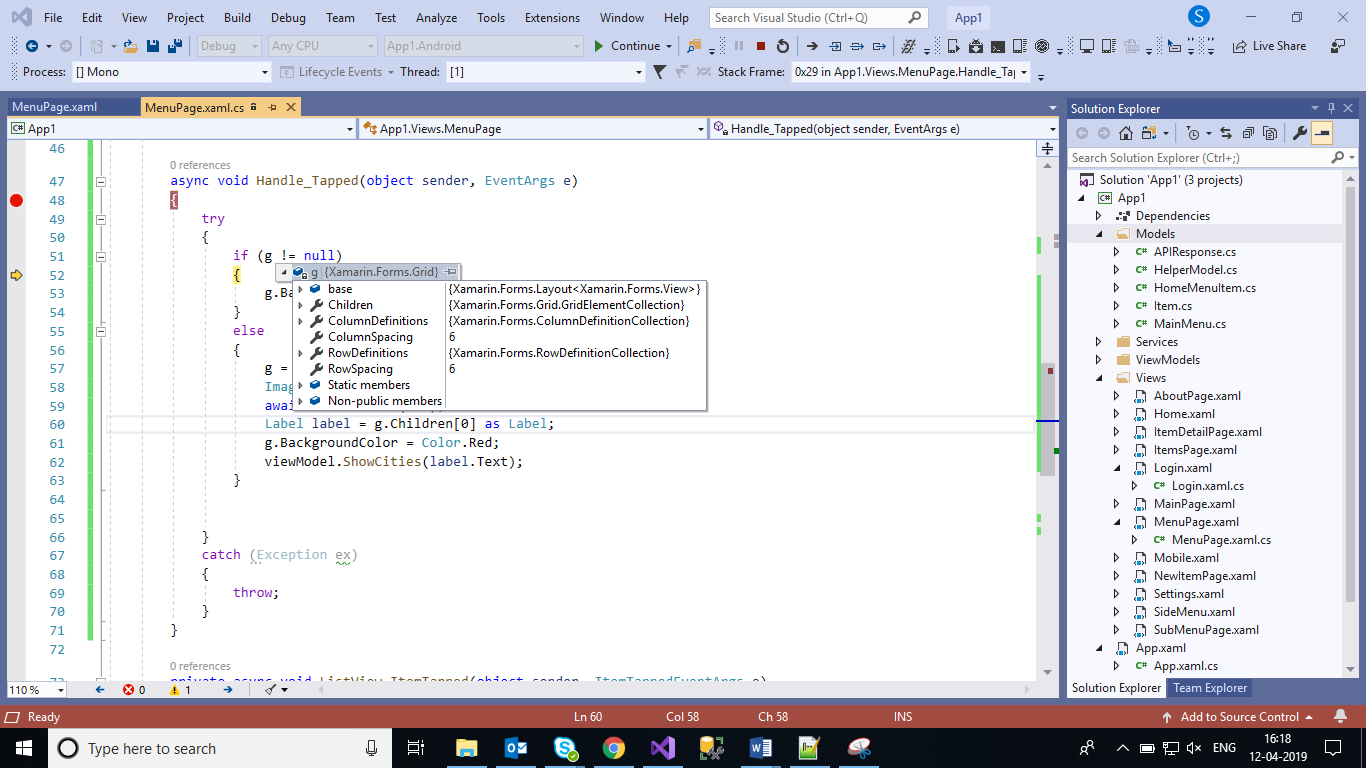

@yogeshwaranmohan, when i declare Grid g = new Grid(); It will never go insde else condtion see below
Take help from here
https://www.c-sharpcorner.com/article/how-to-change-listview-selecteditem-bg-color-in-xamarin-forms/
Hi @Sagar i just gave you the idea i have not tested my code
try this plz
async void Handle_Tapped(object sender, EventArgs e) { try { if (g != null) { g.BackgroundColor = Color.White; } g = sender as Grid; Image im = g.Children[1] as Image; await im.RotateTo(180); Label label = g.Children[0] as Label; g.BackgroundColor = Color.Red; viewModel.ShowCities(label.Text); } catch (Exception ex) { throw; } }No, show the andoid mobile app UI issue screenshot, not your code screenshot
@yogeshwaranmohan

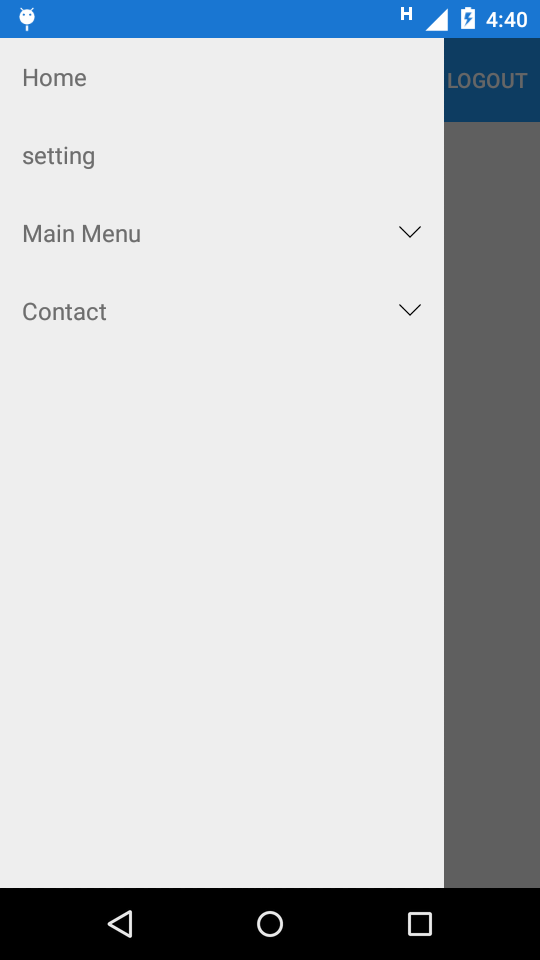

First menus will bind like below

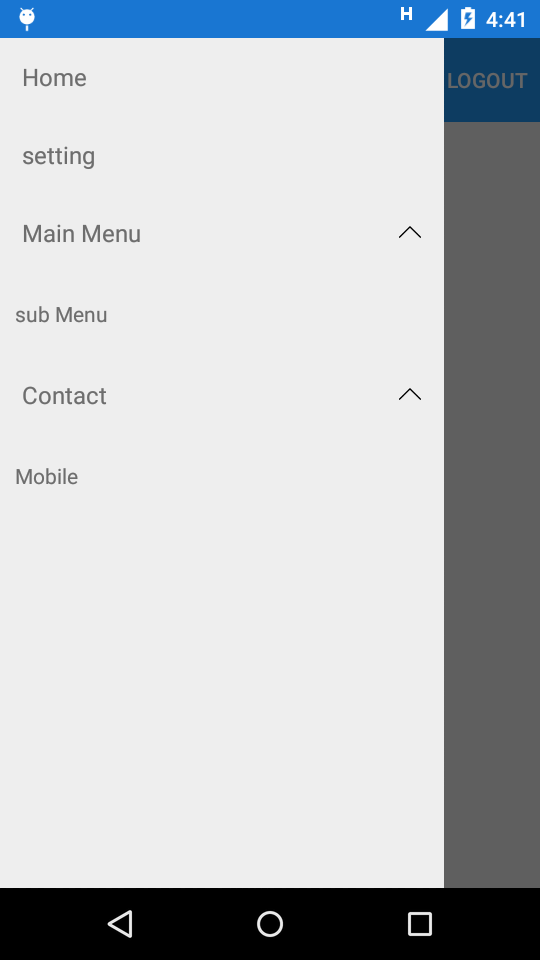

After clicking on the menu it will be like below
My requirement user should know on which item currently he clicked.
Create both list for selected item property. When user click the main list item then, check the sub list has selected item value, if sub list has selected item then set the value as null. Same as if sub list item is selected then check the main list selected item property has value. So you don't change the grid background color. Instead of changing the grid background color, set the list selected item it will change the background.
Do like this,
<ListView ItemsSource="{Binding MainMenues}" SelectedItem="{Binding MainMenuSelectedItem, Mode=TwoWay}" SeparatorVisibility="None" HasUnevenRows="true" SelectionMode="Single"> <ListView.ItemTemplate> <DataTemplate> <ViewCell> <StackLayout Orientation="Vertical"> <Grid Padding="15"> <Label Text="{Binding MainMenuTitle}" FontSize="16" VerticalOptions="Center" HorizontalOptions="Start"/> <Image x:Name="im" Source="{Binding ArrowIconSource}" IsVisible="{Binding IsSubmenu}" HeightRequest="15" WidthRequest="15" VerticalOptions="Center" HorizontalOptions="End"> </Image> <Grid.GestureRecognizers> <TapGestureRecognizer Tapped="Handle_Tapped" NumberOfTapsRequired="1" /> </Grid.GestureRecognizers> </Grid> <Grid IsVisible="{Binding IsChildrenVisible}" HeightRequest="{Binding ChildrenRowHeightRequest}"> <ListView ItemsSource="{Binding Submenues}" SelectedItem="{Binding SubMenuSelectedItem, Mode=TwoWay}" SelectionMode="Single" ItemTapped="ListView_ItemTapped" SeparatorVisibility="None" HasUnevenRows="false"> <ListView.ItemTemplate> <DataTemplate> <ViewCell> <Grid Padding="10"> <Label Text="{Binding SubMenuTitle}" VerticalOptions="Center" HorizontalOptions="Start" /> <Image IsVisible="False" Source="rightarrow.png" HeightRequest="12" WidthRequest="12" VerticalOptions="Center" HorizontalOptions="End"/> </Grid> </ViewCell> </DataTemplate> </ListView.ItemTemplate> </ListView> </Grid> </StackLayout> </ViewCell> </DataTemplate> </ListView.ItemTemplate> </ListView>Code behind
private {MainMenuModel} mainMenuSelectedItem; public {MainMenuModel} MainMenuSelectedItem { get { return mainMenuSelectedItem; } set { mainMenuSelectedItem = value; } } private {SubMenuModel} subMenuSelectedItem; public {SubMenuModel} subMenuSelectedItem { get { return subMenuSelectedItem; } set { subMenuSelectedItem = value; } } async void Handle_Tapped(object sender, EventArgs e) { try { if (SubMenuSelectedItem != null) SubMenuSelectedItem = null; Grid g = sender as Grid; Image im = g.Children[1] as Image; await im.RotateTo(180); Label label = g.Children[0] as Label; viewModel.ShowCities(label.Text); } catch (Exception ex) { throw; } } private async void ListView_ItemTapped(object sender, ItemTappedEventArgs e) { try { if (MainMenuSelectedItem != null) MainMenuSelectedItem = null; var s = e.Group as SubMenu; switch (s.SubMenuTitle.ToLower()) { case "mobile": await RootPage.NavigateFromMenu(5); break; case "sub menu": await RootPage.NavigateFromMenu(4); break; } } catch (Exception ex) { } ((ListView)sender).SelectedItem = null; }When grid is tabbed the, set the grid item to MainMenuSelectedItem, so the list item background will be change. MainMenuSelectedItem means main list items "SelectedItem".
Please Don't mind how you declared the following two variables?
SubMenuSelectedItem
MainMenuSelectedItem
Check my updated code
