Global styles which are coded in visaul studio 2015 project are not working in VS 2017

DarshanJS · August 2018

Hi Guys,
Last year i have created a project of Xamarin forms in VS 2015 and i have wrote global styles in APP.xaml page they were working perfectly and and published also. Recently i have installed VS 2017 global styles of same project are not working at all.
How to solve the issue?

ClintStLaurent · August 2018

Ahh... I think its because your use of OnPlatform is obsolete (old syntax). If you've gone to VS2017 then your Xamarin plugin is also probably up to date, and maybe even the Xamarin.Forms version you're using now probably also got updated, right?

Documentation

Notice the new syntax

            <!--#region Layout and spacing-->
            <OnPlatform x:Key="WindowPadding"
                        x:TypeArguments="Thickness">
                <On Platform="Android"
                    Value="10, 0, 10, 0" />
                <On Platform="WinPhone"
                    Value="10, 0, 10, 0" />
                <On Platform="iOS"
                    Value="20, 0, 20, 0" />
            </OnPlatform>
            <!--#endregion Layout and spacing-->

JohnHardman · August 2018

See https://forums.xamarin.com/discussion/comment/337733/#Comment_337733

Try

            <Style x:Key="MyTitleLabel" TargetType="Label">
                <Setter Property="FontSize">
                    <Setter.Value>
                        <OnPlatform x:TypeArguments="x:Double" >
                            <On Platform="Android" >
                                <OnIdiom x:TypeArguments="x:Double" Tablet="25" Phone="25" />
                            </On>
                            <On Platform="iOS" >
                                <OnIdiom x:TypeArguments="x:Double" Tablet="25" Phone="25" />
                            </On>
                        </OnPlatform>
                    </Setter.Value>
                </Setter>
            </Style>

JohnHardman · August 2018

@DarshanJS - Post your app.xaml and app.xaml.cs (or the relevant bits thereof), plus an example of where you consume one of the global styles.

ClintStLaurent · August 2018

No reason they shouldn't be working. I think its lesson 104 on my series that talks about styles - if it helps.
http://redpillxamarin.com/2018/03/12/2018-101-vs2017-new-solution/

DarshanJS · August 2018

@JohnHardman said:
@DarshanJS - Post your app.xaml and app.xaml.cs (or the relevant bits thereof), plus an example of where you consume one of the global styles.

Code in app.xaml

    <Application.Resources>
            <ResourceDictionary>
                <Style x:Key="MyTitleLabel" TargetType="Label" >
                    <Setter Property="FontSize" >
                        <Setter.Value>

                            <OnIdiom x:TypeArguments="x:Double">
                                <OnIdiom.Phone>
                                    <OnPlatform x:TypeArguments="x:Double" iOS="14" Android="15"  />
                                </OnIdiom.Phone>
                                <OnIdiom.Tablet>
                                    <OnPlatform x:TypeArguments="x:Double" iOS="21" Android="21"  />
                                </OnIdiom.Tablet>
                            </OnIdiom>
                        </Setter.Value>
                    </Setter>
                    <Setter Property="TextColor" Value="#000000" />
                    <Setter Property="FontAttributes" Value="None" />

                </Style>
        </ResourceDictionary>
     </Application.Resources>

usage of styles in other pages for label

<Label x:Name="lblmessage" Margin="20,20,0,0"  IsVisible="False" Grid.Row="1" Text="Sorry, No results found"  HorizontalOptions="CenterAndExpand"  Style="{StaticResource MyTitleLabel}"/>

DarshanJS · August 2018

@ClintStLaurent said:
No reason they shouldn't be working. I think its lesson 104 on my series that talks about styles - if it helps.
http://redpillxamarin.com/2018/03/12/2018-101-vs2017-new-solution/

Hi,
Thanks for the suggestion , i am not creating new project i am getting issue in old project which i was created in VS 2015

JohnHardman · August 2018

@DarshanJS - I do mine in C# currently, rather than XAML, but from a quick look nothing looks obviously wrong in what you posted above. Is Intellisense highlighting anything, or are there any warnings when you build? Is NuGet warning about any consolidation being possible?

I hate to ask this, but since upgrading to VS2017, have you deleted your bin and obj folders? Also, if you check your version control history, has anything been changed since the upgrade?

ClintStLaurent · August 2018

I've never used OnIdiom in my styles. Just for a test, do more vanilla styles work? Just really simple ones where you set color and size and nothing else. I'm just looking to narrow down if its all styles, or just OnIdiom in styles.

DarshanJS · August 2018

@JohnHardman said:
@DarshanJS - I do mine in C# currently, rather than XAML, but from a quick look nothing looks obviously wrong in what you posted above. Is Intellisense highlighting anything, or are there any warnings when you build? Is NuGet warning about any consolidation being possible?

I hate to ask this, but since upgrading to VS2017, have you deleted your bin and obj folders?

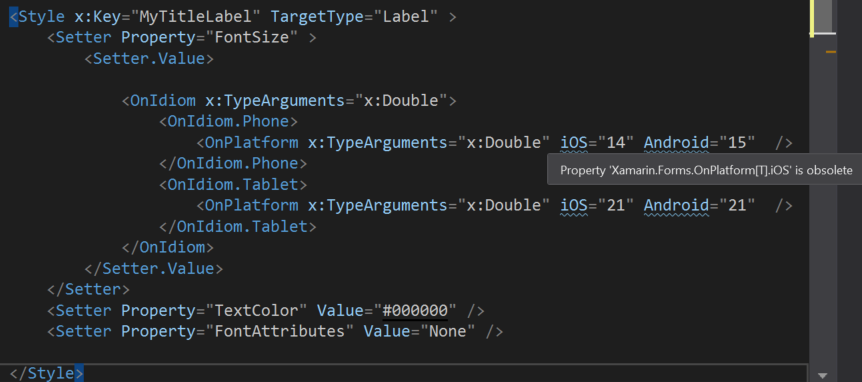

Is Intellisense highlighting anything?
Yes it is highlighting for "OnIdiom.Phone" saying that "The attachable property 'Phone' was not found in the type on OnIdiom

have you deleted your bin and obj folders?
No, i didn't deleted anything and also we are maintaining projects in TFS

DarshanJS · August 2018

@ClintStLaurent said:
I've never used OnIdiom in my styles. Just for a test, do more vanilla styles work? Just really simple ones where you set color and size and nothing else. I'm just looking to narrow down if its all styles, or just OnIdiom in styles.

Sure i will check by removing OnIdiom and try with simple styles

JohnHardman · August 2018

[Deleted]

ClintStLaurent · August 2018

Ahh... I think its because your use of OnPlatform is obsolete (old syntax). If you've gone to VS2017 then your Xamarin plugin is also probably up to date, and maybe even the Xamarin.Forms version you're using now probably also got updated, right?

Documentation

Notice the new syntax

            <!--#region Layout and spacing-->
            <OnPlatform x:Key="WindowPadding"
                        x:TypeArguments="Thickness">
                <On Platform="Android"
                    Value="10, 0, 10, 0" />
                <On Platform="WinPhone"
                    Value="10, 0, 10, 0" />
                <On Platform="iOS"
                    Value="20, 0, 20, 0" />
            </OnPlatform>
            <!--#endregion Layout and spacing-->

DarshanJS · August 2018

@JohnHardman said:
Like I said, I don't use XAML for this, so I could be completely wrong, but should the '.' in OnIdiom.Phone be a space?

No it should be OnIdiom.Phone
Thing is if i define same style code in every page under ResourceDictionary it is working properly, only it is not fetching from App.Xaml i am facing strange issue.

JohnHardman · August 2018

See https://forums.xamarin.com/discussion/comment/337733/#Comment_337733

Try

            <Style x:Key="MyTitleLabel" TargetType="Label">
                <Setter Property="FontSize">
                    <Setter.Value>
                        <OnPlatform x:TypeArguments="x:Double" >
                            <On Platform="Android" >
                                <OnIdiom x:TypeArguments="x:Double" Tablet="25" Phone="25" />
                            </On>
                            <On Platform="iOS" >
                                <OnIdiom x:TypeArguments="x:Double" Tablet="25" Phone="25" />
                            </On>
                        </OnPlatform>
                    </Setter.Value>
                </Setter>
            </Style>

DarshanJS · August 2018

@JohnHardman :
@ClintStLaurent :

Thanks guys you both saved my day. Sometimes Xamarin will give crazy issues (other than this issue) . Thanks for everything.

This code is simple and worked for me

        <Style x:Key="MyTitleLabel" TargetType="Label">
                        <Setter Property="FontSize">
                            <Setter.Value>
                                <OnPlatform x:TypeArguments="x:Double" >
                                    <On Platform="Android" >
                                        <OnIdiom x:TypeArguments="x:Double" Tablet="25" Phone="25" />
                                    </On>
                                    <On Platform="iOS" >
                                        <OnIdiom x:TypeArguments="x:Double" Tablet="25" Phone="25" />
                                    </On>
                                </OnPlatform>
                            </Setter.Value>
                        </Setter>
                    </Style>
