Drawable Menu new page

CastielTR

When click on drawable menu things, I want to the open new page, how when click on drawable menu items triggered and open new activity page?
My main Page:

My drawable menu:

I want to add new activity page:

ColeX

@CastielTR said:

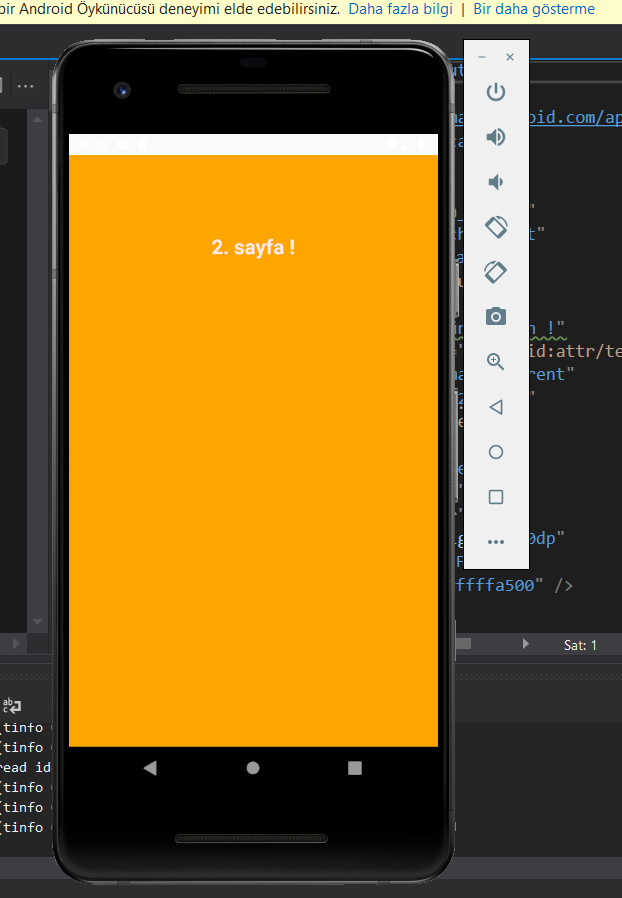

When I want to open the new page, the toolbar disappears and cannot be returned.

1. Make Activity1 inherit from AppCompatActivity .

2. Enable the back button on Toolbar .

3. Override the back button event .

Sample code

 [Activity(Label = "Activity1")]
    public class Activity1 : AppCompatActivity
    {
        protected override void OnCreate(Bundle savedInstanceState)
        {
            base.OnCreate(savedInstanceState);

            // Create your application here

            View v = this.LayoutInflater.Inflate(Resource.Layout.MyLayout, null);

            SetContentView(v);

            SupportActionBar.SetDisplayHomeAsUpEnabled(true);  //show the back button
        }

        public override bool OnOptionsItemSelected(IMenuItem item)
        {
            if (item.ItemId == Android.Resource.Id.Home)
            {
                Finish();
            }
            return true;
        }
    }

ColeX

1. Create a new Activity named MyActivity.cs .

2. Reference the layout to the new Activity in OnCreate method .

[Activity(Label = "MyActivity")]
    public class MyActivity: Activity
    {
        protected override void OnCreate(Bundle savedInstanceState)
        {
            base.OnCreate(savedInstanceState);

            // Create your application here

            View v = this.LayoutInflater.Inflate(Resource.Layout.page1, null);

            SetContentView(v);
        }
    }

3. Start the new activity somewhere (click on drawable menu items)

this.StartActivity(typeof(Activity1));

---

Xamarin forums are migrating to a new home on Microsoft Q&A!
We invite you to post new questions in the Xamarin forums’ new home on Microsoft Q&A!
For more information, please refer to this sticky post.

CastielTR

There seems to be some trouble.

CastielTR

When I want to open the new page, the toolbar disappears and cannot be returned.

ColeX

@CastielTR said:
When I want to open the new page, the toolbar disappears and cannot be returned.

1. Make Activity1 inherit from AppCompatActivity .

2. Enable the back button on Toolbar .

3. Override the back button event .

Sample code

 [Activity(Label = "Activity1")]
    public class Activity1 : AppCompatActivity
    {
        protected override void OnCreate(Bundle savedInstanceState)
        {
            base.OnCreate(savedInstanceState);

            // Create your application here

            View v = this.LayoutInflater.Inflate(Resource.Layout.MyLayout, null);

            SetContentView(v);

            SupportActionBar.SetDisplayHomeAsUpEnabled(true);  //show the back button
        }

        public override bool OnOptionsItemSelected(IMenuItem item)
        {
            if (item.ItemId == Android.Resource.Id.Home)
            {
                Finish();
            }
            return true;
        }
    }
