How to bind collection view selected items into a new listview using MVVM?

matheuspacifici · June 2020

I have the following observableCollection:
Main View Model:

MainViewModel : INotifyProperyChanged
 public MainViewModel()
{
Accessories = new ObservableCollection<string>();
            Accessories.Add("Cast");
              Accessories.Add("Neck Ring");
             Accessories.Add("Shoulder Wedges");
            Accessories.Add("Grip Rings");
            Accessories.Add("Head Rest");
            Accessories.Add("Knee Roll");
            Accessories.Add("Elbow Sling");
             Accessories.Add("Thermoplastic Mask");
            Accessories.Add("Vacuum Lock Bags");
            Accessories.Add("Breast Board");
}

 public ObservableCollection<string> selectedAccessories = new ObservableCollection<string>();
        public ObservableCollection<string> SelectedAccessories
        {
            get => selectedAccessories;
            set
            {
                if (selectedAccessories == value)
                    return;
                else
                {
                    selectedAccessories = value;
                    OnPropertyChanged(nameof(SelectedAccessories));

                }
            }
public event PropertyChangedEventHandler PropertyChanged;
         public void OnPropertyChanged([CallerMemberName] string propertyName = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }

Then on the XAML Side:

    <CollectionView ItemsSource="{Binding Accessories}" SelectionMode="Multiple" SelectedItems="{Binding SelectedAccessories}" />

    <Label x:Name="label1" Text="{Binding SelectedAccessories}"  />

    <ListView x:Name="list1" ItemsSource="{Binding SelectedAccessories}"  />

I would like to display in either a label or listview (both work). Now, Selected Accessories is an observable collection that would need to be the ItemsSource for the new list.

I also tried a different PropertyChanged method and it still doesn't work:

public event PropertyChangedEventHandler PropertyChanged;
        publicvoid OnPropertyChanged2(ObservableCollection<string> selectedAccessories)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(selectedAccessories.ToString()));
        }

The same structure work for other data types but I can't make it work for ObservableCollections. Do I need to create a method to retrieve the strings of the selected items? How can I access the selectedItems?

jezh · June 2020

I couldn't see the whole code of yours, but after I tested page VerticalListMultiplePreSelectionPage.xaml of the sample code and added a listview to display the selected Items (SelectedMonkeys) , it works properly.

The bind model is MonkeysViewModel.cs and the main code is:

   public class MonkeysViewModel : INotifyPropertyChanged
    {
        readonly IList<Monkey> source;
        Monkey selectedMonkey;
        int selectionCount = 1;

        public ObservableCollection<Monkey> Monkeys { get; private set; }
        public IList<Monkey> EmptyMonkeys { get; private set; }

        public Monkey SelectedMonkey
        {
            get
            {
                return selectedMonkey;
            }
            set
            {
                if (selectedMonkey != value)
                {
                    selectedMonkey = value;
                }
            }
        }

        ObservableCollection<object> selectedMonkeys;
        public ObservableCollection<object> SelectedMonkeys
        {
            get
            {
                return selectedMonkeys;
            }
            set
            {
                if (selectedMonkeys != value)
                {
                    selectedMonkeys = value;
                }
            }
        }

        public string SelectedMonkeyMessage { get; private set; }

        public MonkeysViewModel()
        {
            source = new List<Monkey>();
            CreateMonkeyCollection();

            selectedMonkey = Monkeys.Skip(3).FirstOrDefault();
            MonkeySelectionChanged();

            SelectedMonkeys = new ObservableCollection<object>()
            {
                Monkeys[1], Monkeys[3], Monkeys[4]
            };
        }

        void CreateMonkeyCollection()
        {
            source.Add(new Monkey
            {
                Name = "Baboon",
                Location = "Africa & Asia",
                Details = "Baboons are African and Arabian Old World monkeys belonging to the genus Papio, part of the subfamily Cercopithecinae.",
                ImageUrl = "http://upload.wikimedia.org/wikipedia/commons/thumb/f/fc/Papio_anubis_%28Serengeti%2C_2009%29.jpg/200px-Papio_anubis_%28Serengeti%2C_2009%29.jpg"
            });

            source.Add(new Monkey
            {
                Name = "Capuchin Monkey",
                Location = "Central & South America",
                Details = "The capuchin monkeys are New World monkeys of the subfamily Cebinae. Prior to 2011, the subfamily contained only a single genus, Cebus.",
                ImageUrl = "http://upload.wikimedia.org/wikipedia/commons/thumb/4/40/Capuchin_Costa_Rica.jpg/200px-Capuchin_Costa_Rica.jpg"
            });

            Monkeys = new ObservableCollection<Monkey>(source);
        }

        void FilterItems(string filter)
        {
            var filteredItems = source.Where(monkey => monkey.Name.ToLower().Contains(filter.ToLower())).ToList();
            foreach (var monkey in source)
            {
                if (!filteredItems.Contains(monkey))
                {
                    Monkeys.Remove(monkey);
                }
                else
                {
                    if (!Monkeys.Contains(monkey))
                    {
                        Monkeys.Add(monkey);
                    }
                }
            }
        }

        void MonkeySelectionChanged()
        {
            SelectedMonkeyMessage = $"Selection {selectionCount}: {SelectedMonkey.Name}";
            OnPropertyChanged("SelectedMonkeyMessage");
            selectionCount++;
        }

        void RemoveMonkey(Monkey monkey)
        {
            if (Monkeys.Contains(monkey))
            {
                Monkeys.Remove(monkey);
            }
        }

        void FavoriteMonkey(Monkey monkey)
        {
            monkey.IsFavorite = !monkey.IsFavorite;
        }

        #region INotifyPropertyChanged
        public event PropertyChangedEventHandler PropertyChanged;

        void OnPropertyChanged([CallerMemberName] string propertyName = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }
        #endregion
    }

The tested xaml is:

<StackLayout Margin="20">
        <Button  Text="get selected nums" Clicked="Button_Clicked" />
        <CollectionView x:Name="collectionView"
                        ItemsSource="{Binding Monkeys}"
                        SelectionMode="Multiple"
                        SelectedItems="{Binding SelectedMonkeys}">
            <CollectionView.ItemTemplate>
                <DataTemplate>
                    <Grid Padding="10">
                        <Grid.RowDefinitions>
                            <RowDefinition Height="Auto" />
                            <RowDefinition Height="Auto" />
                        </Grid.RowDefinitions>
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition Width="Auto" />
                            <ColumnDefinition Width="Auto" />
                        </Grid.ColumnDefinitions>
                        <Image Grid.RowSpan="2"
                               Source="{Binding ImageUrl}"
                               Aspect="AspectFill"
                               HeightRequest="60"
                               WidthRequest="60" />
                        <Label Grid.Column="1"
                               Text="{Binding Name}"
                               FontAttributes="Bold" />
                        <Label Grid.Row="1"
                               Grid.Column="1"
                               Text="{Binding Location}"
                               FontAttributes="Italic"
                               VerticalOptions="End" />
                    </Grid>
                </DataTemplate>
            </CollectionView.ItemTemplate>
        </CollectionView>


        <ListView  x:Name="lstView" RowHeight="60" ItemsSource="{Binding SelectedMonkeys}" >
            <ListView.ItemTemplate>
                <DataTemplate>
                    <ViewCell>
                        <StackLayout Orientation="Horizontal" HorizontalOptions="Fill" BackgroundColor="Olive">
                            <StackLayout Orientation="Vertical">
                                <Label Text = "{Binding Name}" FontSize="24" AbsoluteLayout.LayoutBounds="0.25, 0.25, 400, 40"/>
                                <Label Text = "{Binding Location}" AbsoluteLayout.LayoutBounds="50, 35, 200, 25"/>
                            </StackLayout>
                            <Image Source="{Binding ImageUrl}" HorizontalOptions="End" AbsoluteLayout.LayoutBounds="250.25, 0.25, 50, 50 "/>
                        </StackLayout>
                    </ViewCell>
                </DataTemplate>
            </ListView.ItemTemplate>
        </ListView>
    </StackLayout>

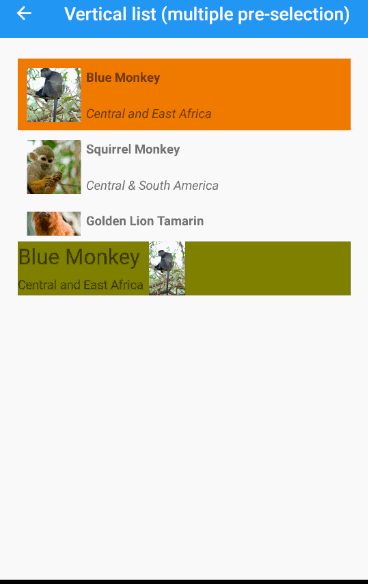

The result is:

jezh · July 2020

Hi @matheuspacifici,have you resolved your question?
